Startseite / Produkte / Außenbeleuchtung / Wandleuchten / Similo / Similo Rechteckig / SIMILO RECT 28L50 930 CL1 ANT

Similo / SIMILO RECT 28L50 930 CL1 ANT

96632803

Datenblatt

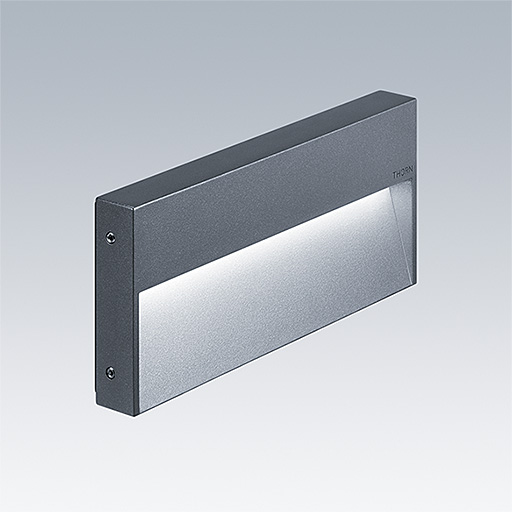

Eine schlanke, rechteckige LED-Leuche zur Anbau-/Wandmontagemontage zur Beleuchtung von Fußwegen. Integrierter Treiber: 28 LEDs betrieben bei 500mA. Schutzklasse I, IP65, IK08. Gehäuse: Aluminiumdruckguss (EN AB-47100 mit niedrigem Kupfergehalt für hohen Korrosionsschutz), anthrazit texturiert. Diffusor: Glas, gehärtet. Schrauben: Edelstahl. Inklusive LED-Modul mit 3000K.

Abmessungen: 270 x 115 x 30 mm
Leuchten Leistung: 13 W
Leuchten Lichtstrom: 421 lm
Leuchten Lichtausbeute: 32 lm/W
Gewicht: 1,27 kg

Modus auswählen
  • Lampenposition:STD - Standard
  • Lichtquelle:LED
  • Leuchten Lichtstrom*:421 lm
  • Leuchten Lichtausbeute*:32 lm/W
  • Farbwiedergabeindex min.:90
  • Ähnlichste Farbtemperatur*:3000 Kelvin
  • Farborttoleranz (initial MacAdam):5
  • Mittlere Bemessungslebensdauer*:L90 50000 h bei 25 °C
  • Leuchten Leistung*:13 W
  • Steuerung:FIX
  • LED
  • CE
  • IK08
  • IP65
  • Schutzklasse 1
  • Ta= -20 to +25

Photometrie

Photometrische Konfiguration

CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.
