IQ Wave SP
Projekte
Milan law firm’s office gets lift from new lighting
Unsere umfassende Lichtlösung schafft bessere Lernbedingungen an GrundschuleKomfort ohne Kompromisse für Büros und Schulen. Eine logische Erweiterung der IQ Wave-Familie für die Anbau- und Pendelmontage
- Design: Form folgt Funktion. Die schlichte, fließende Linienführung kreiert eine moderne und simple Ästhetik.
- Optiken: Innovative, von Thorn patentierte Optik mit MV-Technologie für hervorragend gleichmäßige Beleuchtung und ausgezeichneten Blendschutz. Direktes/indirektes Licht auf Gesichtern und Wänden sorgt für eine komfortable, kommunikative Arbeitsumgebung.
- Steuersysteme: Integrierte Sensoren ermöglichen den Aufbau flexibler Steuersysteme nach Ihren Anforderungen. Steuerung der drahtlosen Lösung über App mit Bluetooth® 4.x - basicDim Wireless. Integrierte PIR- und Mikrowellensensoren sind verfügbar.
- Zusätzliche Optionen (Sensoren, Steuerungen, Funk, Verdrahtungen und Montagearten) sind auf myProduct verfügbar
- Versions adapted for mounting onto Contus trunking available.
Material/Ausfertigung
Frame and end caps: polycarbonate.
Diffuser and body: polycarbonate, aluminium heatsink.
Gear tray: pre-coated white steel with polycarbonate endcaps.
Contus adapter: pre-coated roll form steel, white (similar to RAL9016).
Installation/Montage

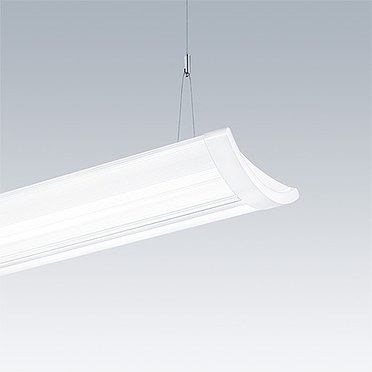

Suspended:
Suitable for suspension with included Y suspension Kit and pre-assembled power cord.
Surface:
Suitable for direct surface or BESA mounting, central or end-cap cable entries.
Continuous run:
Standard products can be connected via optional continuous run Kit. Through wiring versions are available.
Contus Trunking:
Versions adapted for Contus trunking come pre-assembled, ready to fit quickly and easily with twist & lock mechanical/electrical connections.
Spezifikation
Ausschreibungstext:
Leichte Anbau- oder Pendelleuchte mit MV Tech-Optik. LED-Leuchtmittel, indirekt. Kann als Lichtband montiert werden; BESA-Installation oder Durchgangsverdrahtung. Aufteilung indirekt/direkt von 23/77 (HU 60/40): Farbtemperatur 3000 oder 4000 K , CRI > 80, Lebensdauer von 50.000 Std. bei L90 Ta 25° C. Hoch effizient mit 123 lm/W, UGR < 19. Optional mit integriertem Lichtmanagement, PIR, MWS, BC.
Thorn IQ Wave Anbau-/Pendelversion oder gleichwertig.
Neues Produkt
LumExpress Produkt
eControl Produkt
▼ IQ Wave Anbauleuchte, dimmbar
| Beschreibung | Typ | Gewicht (Kg) | Artikelnummer | ||||||
|---|---|---|---|---|---|---|---|---|---|
| IQ SURF L LED4250-830 HFIX | LED | 5.00 | 96628944 | ||||||
| IQ SURF L LED4250-840 HFIX | LED | 5.00 | 96628945 | ||||||
| IQ SURF L LED4900-830 HFIX | LED | 5.00 | 96628946 | ||||||
| IQ SURF L LED4900-840 HFIX | LED | 5.00 | 96628947 | ||||||
| IQ SURF L LED6700-830 HFIX | LED | 5.00 | 96628948 | ||||||
| IQ SURF L LED6700-840 HFIX | LED | 5.00 | 96628949 | ||||||
| IQ SURF S LED2600-830 HFIX | LED | 4.10 | 96628940 | ||||||
| IQ SURF S LED2600-840 HFIX | LED | 4.10 | 96628941 | ||||||
| IQ SURF S LED4250-830 HFIX | LED | 4.10 | 96628942 | ||||||
| IQ SURF S LED4250-840 HFIX | LED | 4.10 | 96628943 |
▼ IQ Wave Anbauleuchte, dimmbar (Varianten)
| Beschreibung | Typ | Gewicht (Kg) | Artikelnummer | ||||||
|---|---|---|---|---|---|---|---|---|---|
| IQ SURF L LED4250-830 HFIX ASY | LED | 5.10 | 96629837 | ||||||
| IQ SURF L LED4250-840 HFIX ASY | LED | 5.10 | 96629836 | ||||||
| IQ SURF L LED4900-840 BC | LED | 5.10 | 96631045 | ||||||
| IQ SURF L LED6700-830 HFIX ASY | LED | 5.10 | 96629310 |
▼ IQ Wave Anbauleuchte, dimmbar, Notlichtversion
| Beschreibung | Typ | Gewicht (Kg) | Artikelnummer | ||||||
|---|---|---|---|---|---|---|---|---|---|
| IQ SURF L LED4250-840 HFIX E3-B | LED | 5.70 | 96629833 | ||||||
| IQ SURF L LED4900-840 HFIX E3-B | LED | 5.70 | 96629834 | ||||||
| IQ SURF L LED6700-840 HFIX E3-B | LED | 5.70 | 96629835 | ||||||
| IQ SURF L LED6700-840 HFIX E3TX-B | LED | 5.70 | 96629296 | ||||||
| IQ SURF L LED6700-840 HFIX E3TX-C | LED | 5.70 | 96629295 | ||||||
| IQ SURF S LED2600-840 HFIX E3-B | LED | 4.70 | 96629831 | ||||||
| IQ SURF S LED4250-840 HFIX E3-B | LED | 4.70 | 96629832 |
▼ IQ Wave Anbauleuchte
| Beschreibung | Typ | Gewicht (Kg) | Artikelnummer | ||||||
|---|---|---|---|---|---|---|---|---|---|
| IQ SURF L LED4250-830 HF | LED | 4.90 | 96629270 | ||||||
| IQ SURF L LED4250-840 HF WH | LED | 4.90 | 96629271 | ||||||
| IQ SURF L LED4900-830 HF | LED | 4.90 | 96629272 | ||||||
| IQ SURF L LED4900-840 HF WH | LED | 4.90 | 96629273 | ||||||
| IQ SURF L LED6700-830 HF | LED | 4.90 | 96629274 | ||||||
| IQ SURF L LED6700-840 HF ASY | LED | 4.90 | 96629309 | ||||||
| IQ SURF L LED6700-840 HF WH | LED | 4.90 | 96629275 | ||||||
| IQ SURF S LED2600-830 HF | LED | 4.00 | 96629266 | ||||||
| IQ SURF S LED2600-840 HF WH | LED | 4.00 | 96629267 | ||||||
| IQ SURF S LED4250-830 HF | LED | 4.00 | 96629268 | ||||||
| IQ SURF S LED4250-840 HF WH | LED | 4.00 | 96629269 |
▼ IQ Wave Anbauleuchte, Notlichtversion
| Beschreibung | Typ | Gewicht (Kg) | Artikelnummer | ||||||
|---|---|---|---|---|---|---|---|---|---|
| IQ SURF L LED4250-840 HF E3-B | LED | 5.50 | 92902793 | ||||||
| IQ SURF L LED4250-840 HF E3-C | LED | 5.00 | 92901912 | ||||||
| IQ SURF L LED4900-830 HF E3-C WH | LED | 5.00 | 92907054 | ||||||
| IQ SURF L LED4900-840 HF E3 TW | LED | 5.00 | 92901703 | ||||||
| IQ SURF L LED4900-840 HF E3-B WH | LED | 5.00 | 92906599 | ||||||
| IQ SURF L LED4900-840 HF E3-C | LED | 5.00 | 92902259 | ||||||
| IQ SURF L LED6700-840 HF E3-B | LED | 4.60 | 92904837 | ||||||
| IQ SURF L LED6700-840 HF E3TX-B WH | LED | 4.60 | 92907855 | ||||||
| IQ SURF L LED6700-840 HF E3TX-C WH | LED | 4.60 | 92909350 | ||||||
| IQ SURF S LED2600-840 HF E3-B | LED | 4.10 | 92902800 | ||||||
| IQ SURF S LED2600-840 HF E3-C | LED | 4.10 | 92901823 | ||||||
| IQ SURF S LED4250-840 HF E3-B | LED | 4.60 | 96629294 | ||||||
| IQ SURF S LED4250-840 HF E3-C | LED | 4.60 | 96629292 |
▼ IQ Wave Anbauleuchte, Sensor
| Beschreibung | Typ | Gewicht (Kg) | Artikelnummer | ||||||
|---|---|---|---|---|---|---|---|---|---|
| IQ SURF L LED6700-840 HFSX | LED | 5.10 | 96629305 | ||||||
| IQ SURF L LED6700-840 MWS | LED | 5.10 | 96629301 | ||||||
| IQ SURF S LED4250-840 MWS | LED | 4.10 | 96629300 |
▼ IQ Wave Pendelleuchte, dimmbar
| Beschreibung | Typ | Gewicht (Kg) | Artikelnummer | ||||||
|---|---|---|---|---|---|---|---|---|---|
| IQ SUSP S LED2600-830 HFIX ML5 | LED | 4.40 | 96628950 | ||||||
| IQ SUSP S LED2600-840 HFIX ML5 | LED | 4.40 | 96628951 | ||||||
| IQ SUSP S LED4250-830 HFIX ML5 | LED | 4.40 | 96628952 | ||||||
| IQ SUSP S LED4250-840 HFIX ML5 WH | LED | 4.40 | 96628953 | ||||||
| IQ SUSP S LED4900-830 HFIX ML5 | LED | 4.40 | 96628954 | ||||||
| IQ SUSP S LED4900-840 HFIX ML5 | LED | 4.40 | 96628955 | ||||||
| IQ SUSP S LED6700-830 HFIX ML5 | LED | 4.40 | 96628956 | ||||||
| IQ SUSP S LED6700-840 HFIX ML5 WH | LED | 4.40 | 96628957 |
▼ IQ Wave Pendelleuchte, dimmbar (Varianten)
| Beschreibung | Typ | Gewicht (Kg) | Artikelnummer | ||||||
|---|---|---|---|---|---|---|---|---|---|
| IQ SUSP S LED4900-840 BC ML3 | LED | 4.50 | 96631046 | ||||||
| IQ SUSP S LED6700-840 BC ML3 | LED | 4.50 | 96631047 |
▼ IQ Wave Pendelleuchte, dimmbar, Notlichtversion
| Beschreibung | Typ | Gewicht (Kg) | Artikelnummer | ||||||
|---|---|---|---|---|---|---|---|---|---|
| IQ SUSP S LED4250-830 HFIX E3 ML6 | LED | 5.10 | 96629840 | ||||||
| IQ SUSP S LED4250-840 HFIX E3 ML6 | LED | 5.10 | 96629839 | ||||||
| IQ SUSP S LED4900-830 HFIX E3 ML6 | LED | 5.10 | 96629842 | ||||||
| IQ SUSP S LED4900-840 HFIX E3 ML6 | LED | 5.10 | 96629841 | ||||||
| IQ SUSP S LED6700-830 HFIX E3 ML6 | LED | 5.10 | 96629845 | ||||||
| IQ SUSP S LED6700-840 HFIX E3 ML6 | LED | 5.10 | 96629844 | ||||||
| IQ SUSP S LED6700-840 HFIX E3TX ML6 | LED | 5.10 | 96629299 |
▼ IQ Wave Pendelleuchte, dimmbar, Durchgangsverdrahtung
| Beschreibung | Typ | Gewicht (Kg) | Artikelnummer | ||||||
|---|---|---|---|---|---|---|---|---|---|
| IQ SUSP S LED2600-840 HFIX TW6 | LED | 5.20 | 92901541 | ||||||
| IQ SUSP S LED4250-840 HFIX TW6 | LED | 4.70 | 92901672 | ||||||
| IQ SUSP S LED4900-830 HFIX TW6 | LED | 4.30 | 92903966 |
▼ IQ Wave Pendelleuchte, basicDIM, Notlichtversion
| Beschreibung | Typ | Gewicht (Kg) | Artikelnummer | ||||||
|---|---|---|---|---|---|---|---|---|---|
| IQ SUSP S LED6700-840 BC E3 ML4 | LED | 5.00 | 92902253 |
▼ IQ Wave Pendelleuchte
| Beschreibung | Typ | Gewicht (Kg) | Artikelnummer | ||||||
|---|---|---|---|---|---|---|---|---|---|
| IQ SUSP S LED2600-830 HF ML3 | LED | 4.30 | 96629276 | ||||||
| IQ SUSP S LED2600-840 HF ML3 WH | LED | 4.30 | 96629277 | ||||||
| IQ SUSP S LED4250-830 HF ML3 | LED | 4.30 | 96629278 | ||||||
| IQ SUSP S LED4250-840 HF ML3 WH | LED | 4.30 | 96629279 | ||||||
| IQ SUSP S LED4900-830 HF ML3 | LED | 4.30 | 96629280 | ||||||
| IQ SUSP S LED4900-840 HF ML3 WH | LED | 4.30 | 96629281 | ||||||
| IQ SUSP S LED6700-830 HF ML3 | LED | 4.30 | 96629282 | ||||||
| IQ SUSP S LED6700-840 HF ML3 WH | LED | 4.30 | 96629283 |
▼ IQ Wave Pendelleuchte, Notlichtversion
| Beschreibung | Typ | Gewicht (Kg) | Artikelnummer | ||||||
|---|---|---|---|---|---|---|---|---|---|
| IQ SUSP S LED2600-840 HF E3 ML4 | LED | 4.30 | 92901779 | ||||||
| IQ SUSP S LED2600-840 HF E3TX TW6 | LED | 5.20 | 92904117 | ||||||
| IQ SUSP S LED4250-840 HF E3 ML4 | LED | 4.90 | 92901533 | ||||||
| IQ SUSP S LED4900-840 HF E3 ML4 | LED | 6.50 | 92903056 | ||||||
| IQ SUSP S LED4900-840 HF E3TX TW6 WH | LED | 4.50 | 92911541 | ||||||
| IQ SUSP S LED6700-840 HF E3 ML4 | LED | 4.15 | 92901741 | ||||||
| IQ SUSP S LED6700-840 HF E3TX TW6 | LED | 8.50 | 92904594 |
▼ IQ Wave Pendelleuchte, Sensor
| Beschreibung | Typ | Gewicht (Kg) | Artikelnummer | ||||||
|---|---|---|---|---|---|---|---|---|---|
| IQ SUSP S LED6700-830 HFSX ML5 | LED | 4.50 | 96629307 |
▼ IQ Wave Pendelleuchte, Durchgangsverdrahtung
| Beschreibung | Typ | Gewicht (Kg) | Artikelnummer | ||||||
|---|---|---|---|---|---|---|---|---|---|
| IQ SUSP S LED2600-840 HF TW6 | LED | 5.20 | 92901666 |
▼ IQ Wave Zubehör
| Beschreibung | Gewicht (Kg) | Artikelnummer | |||||||
|---|---|---|---|---|---|---|---|---|---|
| basicDIM ILD G2 PROGRAMMER | 0.04 | 28003484 | |||||||
| IQ SURF ASYM BRA MWA | 0.05 | 96630389 | |||||||
| IQ SURF connection kit emergency WH | 0.60 | 96630058 | |||||||
| IQ SURF connection kit sensor WH | 0.60 | 96629287 | |||||||
| IQ SURF connection kit standard WH | 0.50 | 96629286 | |||||||
| IQ SUSP CEILING ROSE | 1.50 | 96630258 | |||||||
| IQ SUSP connection kit emergency WH | 0.60 | 96630057 | |||||||
| IQ SUSP connection kit sensor WH | 0.70 | 96629285 | |||||||
| IQ SUSP connection kit standard WH | 0.60 | 96629284 | |||||||
| REMOTECONTROL IR6 | 0.02 | 28000647 |
▼ IQ Wave, Leermodule
| Beschreibung | Gewicht (Kg) | Artikelnummer | |||||||
|---|---|---|---|---|---|---|---|---|---|
| IQ WAVE INFILL 1131 WH | 3.80 | 96629775 | |||||||
| IQ WAVE INFILL 1431 WH | 4.70 | 96629776 | |||||||
| IQ WAVE INFILL 385 WH | 1.40 | 96629772 | |||||||
| IQ WAVE INFILL 565 WH | 2.00 | 96629773 | |||||||
| IQ WAVE INFILL 954 WH | 3.20 | 96629774 |
