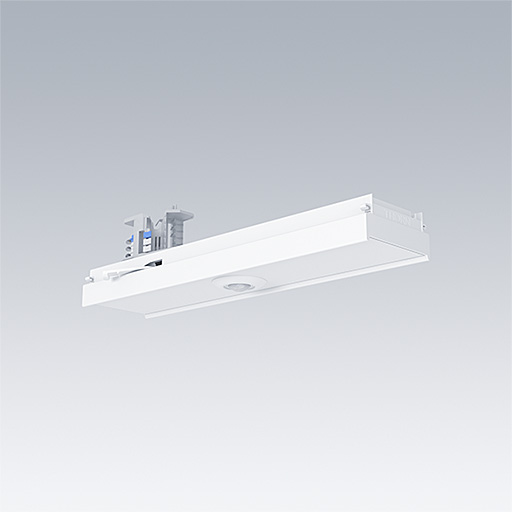

Contus / MSENS LC CONT WH
96637155
▼ Datenblatt
DALI-2 Multi Sensor for motion detection and ambient light detection for connection to DALI-2 control systems. Optimized for industrial, educational and office applications. Motion detection (DALI Part 303) via PIR technology. Light measurement (DALI Part 304) between 5 and 2000 lx possible as standard, minimum value can be reduced to 0.5lx. DALI-2 sensor, compatible with all DALI-2 application controllers that support DALI Part 303 and 304, such as LITECOM DALI-2 and DIMLITE pro. Also for use and combination with BC CONT modules. One sensor requires 5 DALI loads (9mA). For sensor heights of up to 4m. The detection radius for movement is 10m at a mounting height of 3m. Sensor lens is made of polyethylene (PE), sensor housing is made of polycarbonate (PS); CONTUS adapter made of sheet steel, pre-painted in polyester resin paint, in white. A set of shading lenses to reduce the PIR detection range with the lens types corridor, 90° and 180° can be ordered separately with the article number: 28003867.
ambient temperature: -20°C to +50°C
Weight: 0.31 kg
- CE
- UKCA
