Contus / MSENS HC CONT WH

96637159

Datenblatt

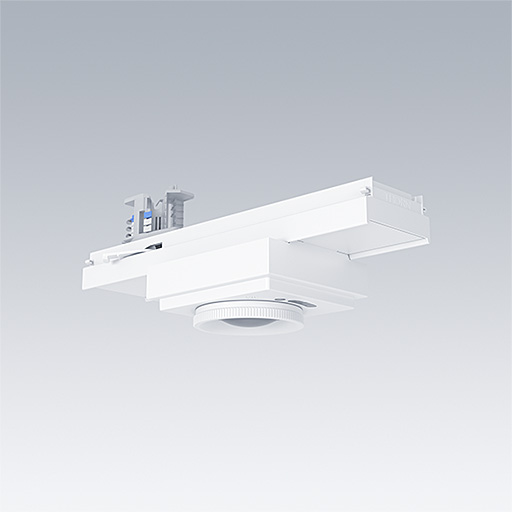

DALI-2 Multi Sensor for motion detection and ambient light detection for connection to DALI-2 controllers. Optimised for industrial and logistics applications. Motion detection (DALI Part 303) via PIR technology. Standard light measurement (DALI Part 304) between 5 and 2000lx possible. Compatible with all DALI-2 application controllers that support DALI Part 303 and 304, such as LITECOM DALI-2 and DIMLITE pro. For use and in combination with BC CONT modules. One sensor requires 5 DALI loads (9mA). For sensor heights up to 16m. Detection radius for motion 14m at mounting height of 9m. Detection radius for light 14m at mounting height of approx. 1.5m. Sensor lens made of polyethylene (PE), sensor housing made of polycarbonate (PS). CONTUS adapter made of sheet steel, pre-painted in polyester lacquer finish in white. Sensor is always white, even with black housing. Shield to reduce the PIR detection range is optionally available, has no effect on the light measurement.

ambient temperature: -20°C to +45°C
Weight: 0.56 kg

  • CE
  • UKCA
