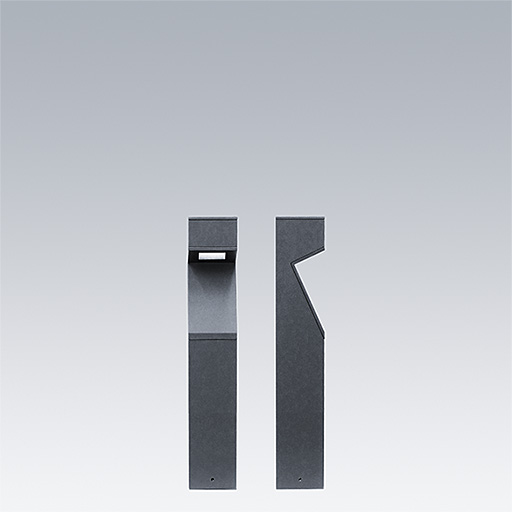

Axyl Geo
Axyl Geo is a bollard offering an premium distinctive design for building surround applications
- Premium design bollard available in two heights (600, 950mm) and four standard Thorn's colours (grey, anthracite, black, white)
- Ideal für Wege- und Orientierungsbeleuchtung mit 180° Lichtverteilung dank speziellem Prismenglas. Für erhöhten Sehkomfort steht ein Blendschutz als Zubehör zur Verfügung (96700532)
- Erhältlich in 2700K, 3000K, 4000K und CRI90
- Axyl Geo ist erhältlich in der Konnektivitätsvariante DALI2 On-board
Material/Ausfertigung
Die-cast aluminium housing.
Prismatic toughened glass.
Stainless steel screws.
Silicone gaskets.
Double Powder Paint process.
Suitable for C3 (standard corrosion class according to ISO 9223 : 2012).
Installation/Montage
Installation method available :
- Installation on concrete ground (fixing anchors M6 not delivered with product)
- Recessed installation with flange accessory to be ordered separately (96700572)
Delivered pre-wired and with IP68 gel connector.
Maximum cable size : 5x1mm² - 5x1.5mm²
Spezifikation
To specify state:
Bollard with a unique, premium design available in two heights (600mm and 950mm) and four standard colors (gray, anthracite, black, white). An asymmetrical distribution facilitates beaconing in narrow aisles, and an accessory is available to reduce glare (96700532). Available in 2700K, 3000K and 4000K with a CRI of 90, ideal for private residential applications.
Bollard can be fixed to the ground, or to an accessory (to be ordered separately) to be embedded in concrete.
Integrated DALI2 driver.
Robustness: IP65 & IK06.
As Thorn Axyl Geo
▼ Axyl Geo
▼ Axyl Geo, accessories
| Beschreibung | Gewicht (Kg) | Artikelnummer | |||||||
|---|---|---|---|---|---|---|---|---|---|
| AXYL GEO FLANGE D120 | 0.53 | 96700572 | |||||||
| AXYL GEO GLARE BK | 0.02 | 96700532 |
