Cesar Stroll

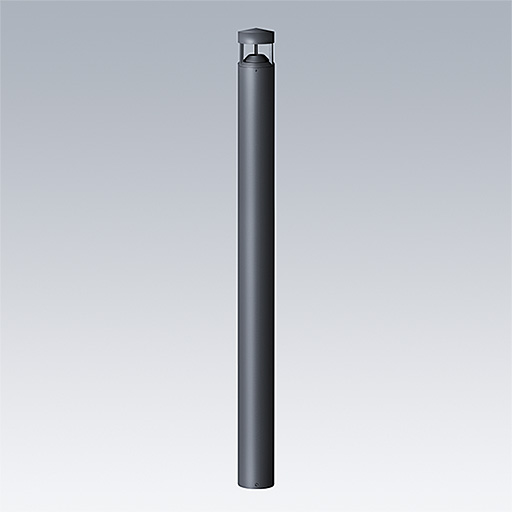

Cesar Stroll Post Top, heritage design with robustness, perfect for pedestrian areas, parks, and city spaces.
- Robust pole luminaire available in four standard Thorn's colours (grey, anthracite, black, white)
- Der vandalensichere Diffusor liefert ein weiches, blendfreies Licht für mehr Sicherheit und Wohlgefühl in Außenbereichen
- Erhältlich in 2700K, 3000K, 4000K und CRI90
- Cesar Stroll ist erhältlich mit DALI2 On-board Konnektivität
Material/Ausfertigung
Die-cast and extruded aluminium housing.
Polycarbonate diffusor.
Stainless steel screws.
Silicone gaskets.
Double Powder Paint process.
Suitable for C3 (standard corrosion class according to ISO 9223 : 2012).
Installation/Montage
Installation method available :
- Installation on concrete ground with base accessory (96700286 - GY | 96700287 - ANT | 96701174 - WH | 96701175 - BK) (fixing anchors M16 not delivered with product)
- Recessed installation with flange accessory to be ordered separately (96700289).
Delivered pre-wired and with IP68 gel connector.
Maximum cable size : 4x1mm² - 4x1.5mm².
Spezifikation
To specify state:
A robust circular light column available in four standard colours (grey, anthracite, black and white), ideal for blending into a variety of spaces such as squares, parks and residential areas. Cesar Stroll is also available as a bollard to provide a visual identity for the entire project. Omni-directional distribution for easy signage in parks and squares. Available in 2700K, 3000K and 4000K with a CRI of 90. Column can be fixed to the ground using an accessory (to be ordered separately), or with an accessory (to be ordered separately) to be embedded in concrete. Integrated DALI2 driver.
Robustness: IP65 & IK10.
As Thorn Cesar Stroll
▼ Cesar Stroll
| Beschreibung | Systemleistung (W) | Lichtstrom (lm) | Typ | Gewicht (Kg) | Artikelnummer | ||||
|---|---|---|---|---|---|---|---|---|---|
| CESAR STROLL H2500 1L927 S/S HFX ANT | 35 | 1843 | LED | 21.35 | 96700265 | ||||
| CESAR STROLL H2500 1L927 S/S HFX BK | 35 | 1843 | LED | 21.35 | 96700263 | ||||
| CESAR STROLL H2500 1L927 S/S HFX GY | 35 | 1843 | LED | 21.35 | 96700264 | ||||
| CESAR STROLL H2500 1L927 S/S HFX WH | 35 | 1843 | LED | 21.35 | 96700262 | ||||
| CESAR STROLL H2500 1L930 S/S HFX ANT | 35 | 1941 | LED | 21.35 | 96700273 | ||||
| CESAR STROLL H2500 1L930 S/S HFX BK | 35 | 1941 | LED | 21.35 | 96700271 | ||||
| CESAR STROLL H2500 1L930 S/S HFX GY | 35 | 1941 | LED | 21.35 | 96700272 | ||||
| CESAR STROLL H2500 1L930 S/S HFX WH | 35 | 1941 | LED | 21.35 | 96700270 | ||||
| CESAR STROLL H2500 1L940 S/S HFX ANT | 35 | 2076 | LED | 21.35 | 96700269 | ||||
| CESAR STROLL H2500 1L940 S/S HFX GY | 35 | 2076 | LED | 21.35 | 96700268 | ||||
| CESAR STROLL H2500 1L940 S/S HFX WH | 35 | 2076 | LED | 21.35 | 96700266 | ||||
| CESAR STROLL H25001L940 S/S HFX BK | 35 | 2076 | LED | 21.35 | 96700267 |
