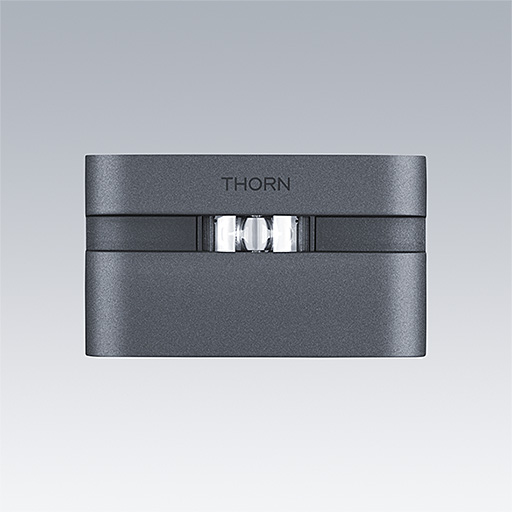

Axyl Etch
Axyl Etch is a square wall light for window reveal applications
- Wall mounted luminaire available in four standard colours (grey, anthracite, black, white)
- Enger Lichtstrahl (170° x 10°) zur Beleuchtung größer Öffnungen
- Erhältlich in 2700K, 3000K, 4000K und CRI80
- Axyl Etch ist erhältlich in den Konnektivitätsvarianten Nicht-dimmbar oder DALI2 (Option mit externem Treiber)
Material/Ausfertigung
Die-cast aluminium housing.
Clear polycarbonate diffusor.
Silicone gaskets.
Double Powder paint process.
Suitable for C3 (standard corrosion class according to ISO 9223 : 2012).
Installation/Montage
Suitable for wall mounting with 2 oblong fixing points for positioning.
Screw to adjust planity up to 5° Tilt.
Fixing anchors and screw not delivered with product.
Pre-wired with 1.5m cable.
Remote DALI-2 driver to be ordered separately.
Spezifikation
To specify state:
Compact luminaire specifically designed for window frames and arches, available in four standard colours (grey, anthracite, black, white). The optics, specifically designed for Axyl Etch, create an intensive 10x170° beam that is ideal for this application.
Available in 2700K, 3000K and 4000K with a CRI of 80, ideal for residential or public areas and historic facades.
Non-dimmable driver integrated, possibility of integrating DALI2 dimming via a remote driver to be controlled separately with an RD luminaire.
Robustness: IP65 & IK10.
As Thorn Axyl Etch
