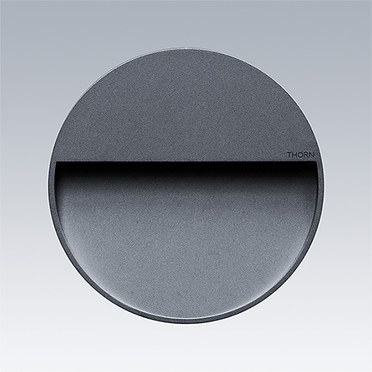

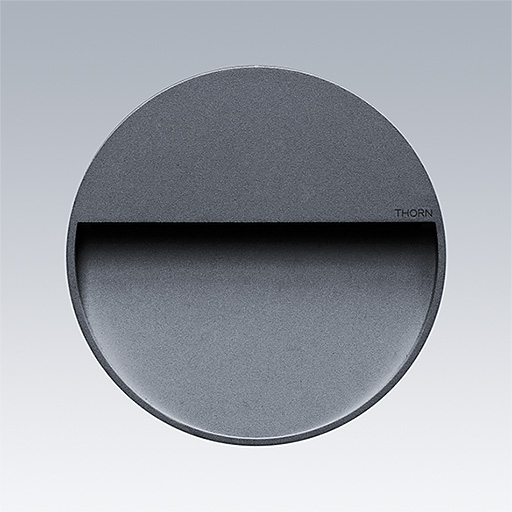

Cesar Stride
Cesar Stride is a round wall light with possibility to recess it for flush installation
- Wall mounted or recessed wall luminaire available in four standard colours (grey, anthracite, black, white)
- Ausgezeichnete asymmetrische Lichtverteilung und vollständige Entblendung für eine sichere Beleuchtungsanlage, reduziert Lichtverschmutzung
- Erhältlich in 2700K, 3000K, 4000K und CRI90
- Cesar Stride ist erhältlich in den Konnektivitätsvarianten Nicht-dimmbar oder DALI2 (Option mit externem Treiber)
Material/Ausfertigung
Die-cast and extruded aluminium housing.
Silicone gaskets.
Double Powder paint process.
Suitable for C3 (standard corrosion class according to ISO 9223 : 2012.
Installation/Montage
Suitable for wall mounting with 2 oblong fixing points for positioning.
Fixing anchors and screw not delivered with product.
Maximum cable size :
-Cesar Stride HF : 3 x 1mm² - 3 x 2,5mm²
-Cesar Stride RD : 2 x 1mm² - 2 x 2,5mm²
Remote DALI-2 driver to be ordered separately.
Recessed box accessory to be ordered separately : 96700571.
Spezifikation
To specify state:
Circular wall light available in four standard colours (grey, anthracite, black, white). Cesar Stride's slim design gives the illusion of a recessed luminaire with the ease of installation of a wall light. A flush-mounted box is available to make the luminaire even more discreet. Its asymmetrical light distribution means it can be installed in a way that protects the night sky. Available in 2700K, 3000K and 4000K with a CRI of 90, ideal for residential or public applications. Non-dimmable driver integrated, possibility of integrating DALI2 dimming via a remote driver to be controlled separately with an RD luminaire.
Robustness: IP65 & IK08.
Recessed box: 96700571.
As Thorn Cesar Stride
▼ Cesar Stride
▼ Cesar Stride, recessed box
| Beschreibung | Gewicht (Kg) | Artikelnummer | |||||||
|---|---|---|---|---|---|---|---|---|---|
| CESAR STRIDE RBOX M | 0.84 | 96700571 |
