Cesar Jazz

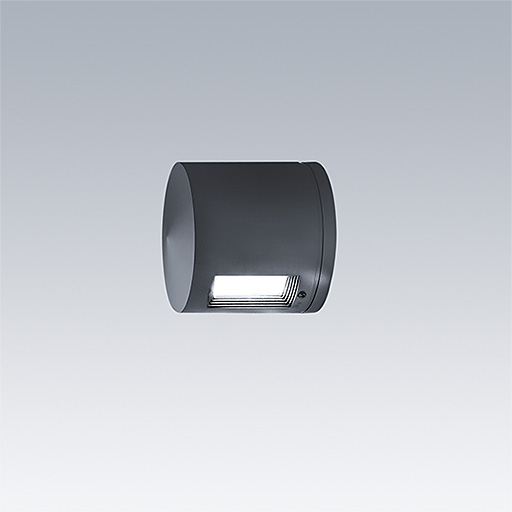

Cesar Jazz is a circular wall light suitable for both outdoor and indoor applications
- Elegante, kreative, runde Wandleuchte in vier Standardfarben (grau, anthrazit, schwarz, weiß)
- Mehrere Lichtverteilungsvarianten für unterschiedliche Atmosphären: ein Fenster (eng oder breit), zwei Fenster (eng oder breit), vier Fenster (eng)
- Erhältlich in 2700K, 3000K, 4000K und CRI90
- Cesar Jazz ist erhältlich in den Konnektivitätsvarianten Nicht-dimmbar oder DALI2 (Option mit externem Treiber)
Material/Ausfertigung
Die-cast aluminium housing.
Reflector in polymers covered with pure aluminium.
Clear toughened glass.
Stainless steel A4 screws.
Silicone gaskets.
Three-step painting process.
Suitable for C3 (standard corrosion class according to ISO 9223 : 2012).
Installation/Montage
Suitable for wall mounting with 2 fixing points (ø 6,5mm) for accurate positioning.
Fixing anchors and screw delivered with product.
Maximum cable size :
-Cable size : 3 x 1mm² - 3 x 2,5mm²
Remote DALI-2 driver to be ordered separately.
Spezifikation
To specify state:
Elegant, creative round wall light available in four standard colours (grey, anthracite, black, white). A choice of light distribution to create different moods: intensive beam, intensive beam (up) and extensive beam (down), four cross-shaped intensive beams. Available in 2700K, 3000K and 4000K with a CRI of 90, ideal for residential and architectural applications. Non-dimmable driver integrated, possibility of integrating DALI2 dimming via a remote driver to be controlled separately with an RD luminaire. Robustness: IP65 & IK10.
As Thorn Cesar Jazz
