Axyl Stride

  • Axyl Stride

Axyl Stride is a familly of square and rectangle wall light with possibility to recess it for flush installation

  • Wall mounted or recessed wall luminaire available in four standard colours (grey, anthracite, black, white). And two size, small square shape and medium rectangular shape
  • Ausgezeichnete asymmetrische Lichtverteilung und vollständige Entblendung für eine sichere Beleuchtungsanlage, reduziert Lichtverschmutzung
  • Erhältlich in 2700K, 3000K, 4000K und CRI90
  • Axyl Stride ist erhältlich in den Konnektivitätsvarianten Nicht-dimmbar oder DALI2 (Option mit externem Treiber)

Material/Ausfertigung

Die-cast and extruded aluminium housing.
Silicone gaskets.
Double Powder paint process.
Suitable for C3 (standard corrosion class according to ISO 9223 : 2012).

Installation/Montage

Suitable for wall mounting with 2 oblong fixing points for positioning.
Fixing anchors and screw not delivered with product.
Maximum cable size :
-Axyl Stride HF : 3 x 1mm² - 3 x 2,5mm²
-Axyl Stride RD : 2 x 1mm² - 2 x 2,5mm²
Remote DALI-2 driver to be ordered separately.
Recessed box accessory to be ordered separately : 96700558 (square version) - 96700545 (rectangular version).

Spezifikation

To specify state:
Wall light available in two sizes (square and rectangular) and four standard colours (grey, anthracite, black, white). Axyl Stride's slim design gives the illusion of a recessed luminaire with the ease of installation of a wall light.
A flush-mounted box is available to make the luminaire even more discreet. Its asymmetrical light distribution means it can be installed in a way that protects the night sky.
Available in 2700K, 3000K and 4000K with a CRI of 90, ideal for residential or public applications.
Non-dimmable driver integrated, possibility of integrating DALI2 dimming via a remote driver to be controlled separately with an RD luminaire.
Robustness: IP65 & IK08.
Recessed box: 96700558 (square version) - 96700545 (rectangular version).
As Thorn Axyl Stride

Neues Produkt
LumExpress Produkt
eControl Produkt

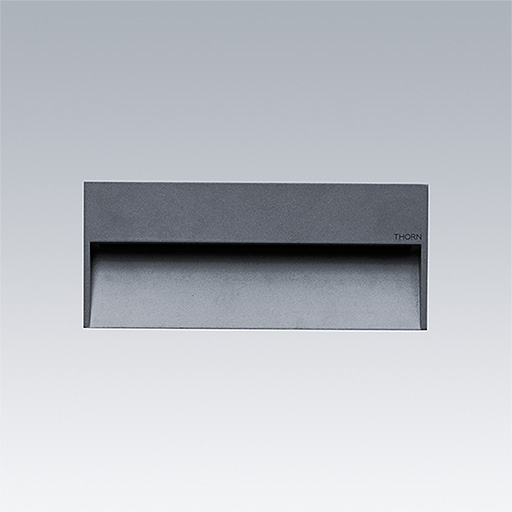

▼ Axyl Stride, Rectangle (L size)

BeschreibungSystemleistung (W)Lichtstrom (lm)   TypGewicht (Kg)Artikelnummer
AXYL STRIDE L SE 28L 927 A/S HF ANT13399LED1.3296700536
AXYL STRIDE L SE 28L 927 A/S HF BK13399LED1.3296700534
AXYL STRIDE L SE 28L 927 A/S HF GY13399LED1.3296700535
AXYL STRIDE L SE 28L 927 A/S HF WH13399LED1.3296700533
AXYL STRIDE L SE 28L 927 A/S RD ANT13399LED1.3296701575
AXYL STRIDE L SE 28L 927 A/S RD BK13399LED1.3296701573
AXYL STRIDE L SE 28L 927 A/S RD GY13399LED1.3296701574
AXYL STRIDE L SE 28L 927 A/S RD WH13399LED1.3296701572
AXYL STRIDE L SE 28L 930 A/S HF ANT13421LED1.3296700544
AXYL STRIDE L SE 28L 930 A/S HF BK13421LED1.3296700542
AXYL STRIDE L SE 28L 930 A/S HF GY13421LED1.3296700543
AXYL STRIDE L SE 28L 930 A/S HF WH13421LED1.3296700541
AXYL STRIDE L SE 28L 930 A/S RD ANT13421LED1.3296701583
AXYL STRIDE L SE 28L 930 A/S RD BK13421LED1.3296701581
AXYL STRIDE L SE 28L 930 A/S RD GY13421LED1.3296701582
AXYL STRIDE L SE 28L 930 A/S RD WH13421LED1.3296701580
AXYL STRIDE L SE 28L 940 A/S HF ANT13423LED1.3296700540
AXYL STRIDE L SE 28L 940 A/S HF BK13423LED1.3296700538
AXYL STRIDE L SE 28L 940 A/S HF GY13423LED1.3296700539
AXYL STRIDE L SE 28L 940 A/S HF WH13423LED1.3296700537
AXYL STRIDE L SE 28L 940 A/S RD ANT13423LED1.3296701579
AXYL STRIDE L SE 28L 940 A/S RD BK13423LED1.3296701577
AXYL STRIDE L SE 28L 940 A/S RD GY13423LED1.3296701578
AXYL STRIDE L SE 28L 940 A/S RD WH13423LED1.3296701576

▼ Axyl Stride, Square (M size)

BeschreibungSystemleistung (W)Lichtstrom (lm)   TypGewicht (Kg)Artikelnummer
AXYL STRIDE M SE 28L 927 A/S HF ANT10362LED1.3696700549
AXYL STRIDE M SE 28L 927 A/S HF BK10362LED1.3696700547
AXYL STRIDE M SE 28L 927 A/S HF GY10362LED1.3696700548
AXYL STRIDE M SE 28L 927 A/S HF WH10362LED1.3696700546
AXYL STRIDE M SE 28L 927 A/S RD ANT10362LED1.3696701587
AXYL STRIDE M SE 28L 927 A/S RD BK10362LED1.3696701585
AXYL STRIDE M SE 28L 927 A/S RD GY10362LED1.3696701586
AXYL STRIDE M SE 28L 927 A/S RD WH10362LED1.3696701584
AXYL STRIDE M SE 28L 930 A/S HF ANT10382LED1.3696700557
AXYL STRIDE M SE 28L 930 A/S HF BK10382LED1.3696700555
AXYL STRIDE M SE 28L 930 A/S HF GY10382LED1.3696700556
AXYL STRIDE M SE 28L 930 A/S HF WH10382LED1.3696700554
AXYL STRIDE M SE 28L 930 A/S RD ANT10382LED1.3696701595
AXYL STRIDE M SE 28L 930 A/S RD BK10382LED1.3696701593
AXYL STRIDE M SE 28L 930 A/S RD GY10382LED1.3696701594
AXYL STRIDE M SE 28L 930 A/S RD WH10382LED1.3696701592
AXYL STRIDE M SE 28L 940 A/S HF ANT10401LED1.3696700553
AXYL STRIDE M SE 28L 940 A/S HF BK10401LED1.3696700551
AXYL STRIDE M SE 28L 940 A/S HF GY10401LED1.3696700552
AXYL STRIDE M SE 28L 940 A/S HF WH10401LED1.3696700550
AXYL STRIDE M SE 28L 940 A/S RD ANT10401LED1.3696701591
AXYL STRIDE M SE 28L 940 A/S RD BK10401LED1.3696701589
AXYL STRIDE M SE 28L 940 A/S RD GY10401LED1.3696701590
AXYL STRIDE M SE 28L 940 A/S RD WH10401LED1.3696701588

▼ Axyl Stride, recessed box

Beschreibung   Gewicht (Kg)Artikelnummer
AXYL STRIDE RBOX L0.7796700545
AXYL STRIDE RBOX M0.8996700558
